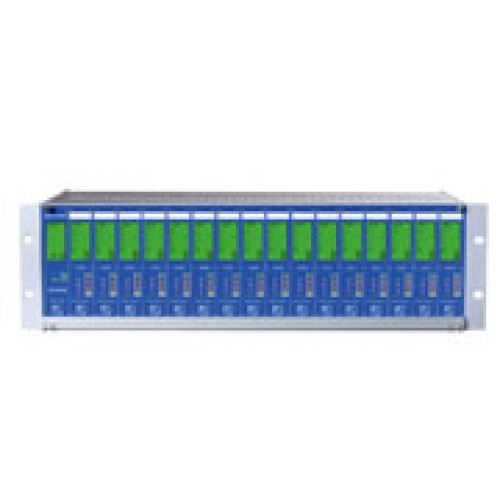

SAFETAK GC8160 Panel-Mounted Gas Detection Controller
- Product Code: GC8160
- Product SKU:
- Availability: In Stock
SAFETAK GC8160 Panel-Mounted Gas Detection Controller
- Designed with the latest international technology
- GC8160 is manufactured in accordance with the EN European standards
- The GC8160 can be used with explosion-proofed GC710 and GC720 and other compatible fixed gas detectors.
Easy to operate
- Independent 16 channel cards
- 3U, 19’’ standard frame dimension cabinet
- Front card insert
- Separately programmable for each channel by key-press or PC
- Audible & visual alarm for fault
- Detect 16 channels simultaneously
- Separate LCD screen/channel
Cost effective
- Competitive price
- Low installation cost
- Reduced maintenance cost
- Easy training
Display screen
- Screen with all useful information
High performance
- Alarm mode: 3 gas level alarm per channel, system failure, over scale. All alarms are audible and visual.
- Main and standby power overload protection
- Short circuit protection
- Data memory function, addressable to history data
- Input protection
- Continuous detection
- Audible alarm: 85 db
- Input signal and output signal: 4-20mA
- Detection mode: Oxygen, toxic gas or fuel gas detection, two or three wire
- Input voltage: 250V AC, 3A
- Output voltage: 24V AC
- Communication port: RS485/RS232
- Consumption: 350W
- All sensors from European origin
Warranty
- 1 year
Accessories
- Relay signal board
- Audible and visual alarm
Approvals
- Ex d IICT6
- DNV10 ATEX 78798
- EN 60079-0, EN 60079-1
Warranty
- 1 year
